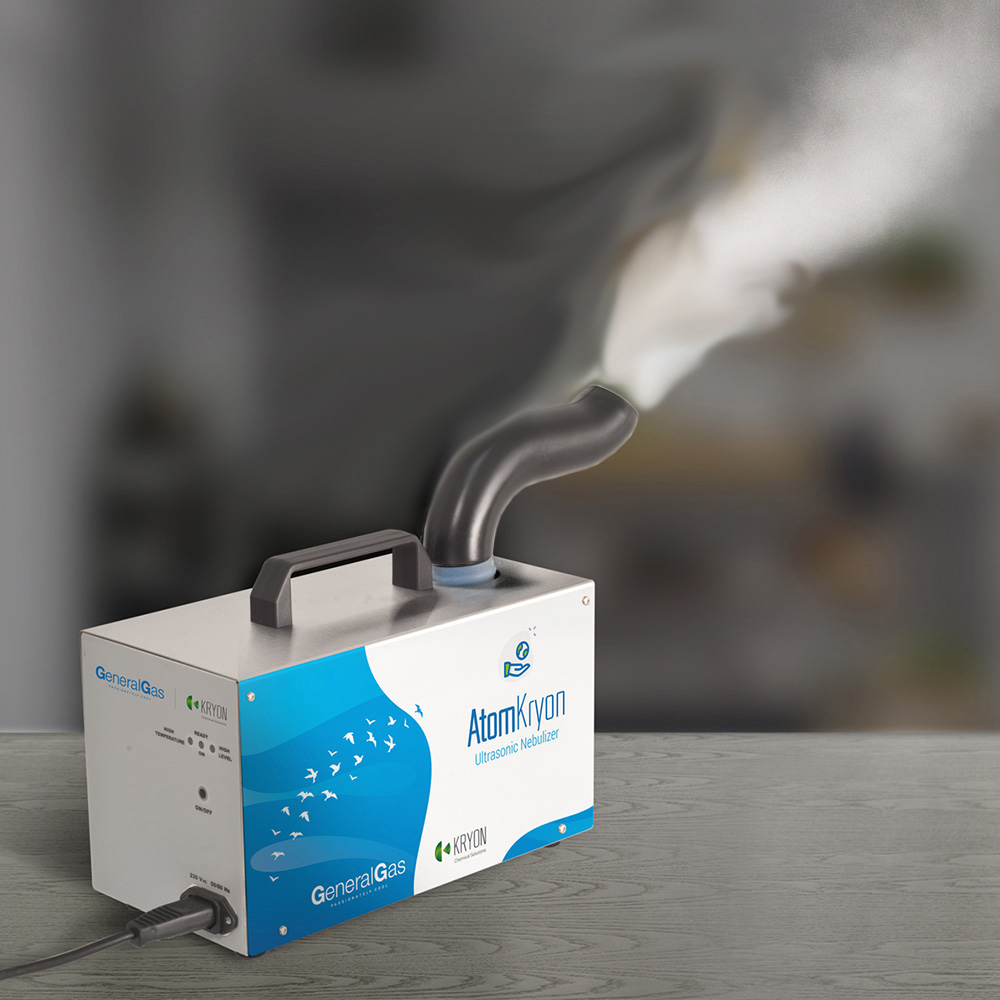

AtomKryon - Ultrasonic Professional Nebulizer for Ambient Purifying, complete with n° 24 ATOM LIQUID disinfectant treatments 250 ml.
AtomKryon is an electronic ultrasonic device that instantly generates the nebulization of a sanitizing liquid, for sanitation of civil and industrial air conditioning and for automotive interiors and environments.
The system uses an electronic circuit to convert an electrical oscillation with a frequency of 1.7 MHz in a mechanical oscillation, by means of an ultrasonic transducer.
This creates a snapshot of the liquid into the ultrasonic transducer itself.
The nebulized liquid is then conveyed, via a fan, to an outlet pipe swivel and aspirated through the recirculation system of the air conditioning of the motor vehicle to be sanitized.
A 100ml treatment lasts about 12 minutes at 20 ° C and stops automatically when it reaches the minimum level of the liquid inside the tank, or when the treatment time is over.
At higher environement temperatures the treatment will have a shorter duration, vice versa at lower temperatures will last longer.
One of the main advantages of the system of ultrasonic nebulization is to obtain atomized particles of liquid at room temperature. For this reason, these particles do not easily settle on surfaces they encounter in their path.
The phenomenon of condensation is avoided due to the higher temperature of the vaporized liquid for heating compared to that environment.
The particles, sprayed with the here above explained system, have a size less than 5 microns, for which are light enough to be able to deeply penetrate in the system, differently to what happens in the use of classical aerosol sprays in which the weight of the nebulized particles causes a rapid deposition of the same.
The air conditioning system (including ducts and fans) is then completely sanitized, blocking the proliferation of bacteria and germs, while unpleasant odors are eliminated in the environment.
It is suggested to repeat the treatment at least once a year to obtain the safety of an air conditioning system without odor and without bacterial contamination.
MEETS THE FOLLOWING RULES:
- EN 50081-1
- EN60555
- EN 55014
IN AGREEMENT WITH THE FOLLOWING DIRECTIVES:
The machine has also, for safety, a maximum liquid level and an ambient temperature sensor.
Complete kit including:
The max liquid level can be modified according to your needs (the max liquid quantity that can be nebulized is about 400ml).
- Ultrasonic module frequency: 1.7MHz Voltage source: 230Vac or 110Vac 50/60Hz +/-10%
- Thermo-switch of 100°C in primary of transformer, resettable fuses on the two secondary outputs of transformer
- Power consumption: 30W
- Nebulization capacity (with drinking water): about 385ml / hour (with treatment of 100ml every time at 20°C of ambient temperature)
- Operating temperature range: 0 to +60°C
- Storage temperature range: -30°C to +90°C
- Dimensions (DxWxH): L285 X P130 X H210 mm.
- Weight: about 3,1 kg
AtomKryon is suitable to work with ATOM treatment, formulated in different fragrances and treatment:
- PURE, marine note;
- LEMON, citrus note;
- MINT, mint note;
- SMOKI, eliminates smoke and cigarette odors;
- WOOFI, eliminates pet odors.
Scrupulously follow the user manual got with the product and keep it during the time.
Do not remain in the cockpit during treatment; do not leave other people, children or animals in the cockpit.
Ventilate for at least 5 minutes after the treatment.
