High precision Refrigerant Charging Scale (Mastercool), packaged in a custom molded plastic case - weighing capacity 5 kg +/- 1 gram, with 3 adapters (outlet female 7/16 20-UNF for connection to 1-liter R600a-R290 cylinders, outlet female 1/4 SAE RH and outlet female 5/16 SAE RH for connection to 1-liter and 2,5-liter R134a, R410A, R407C, R32, R422D cylinders)

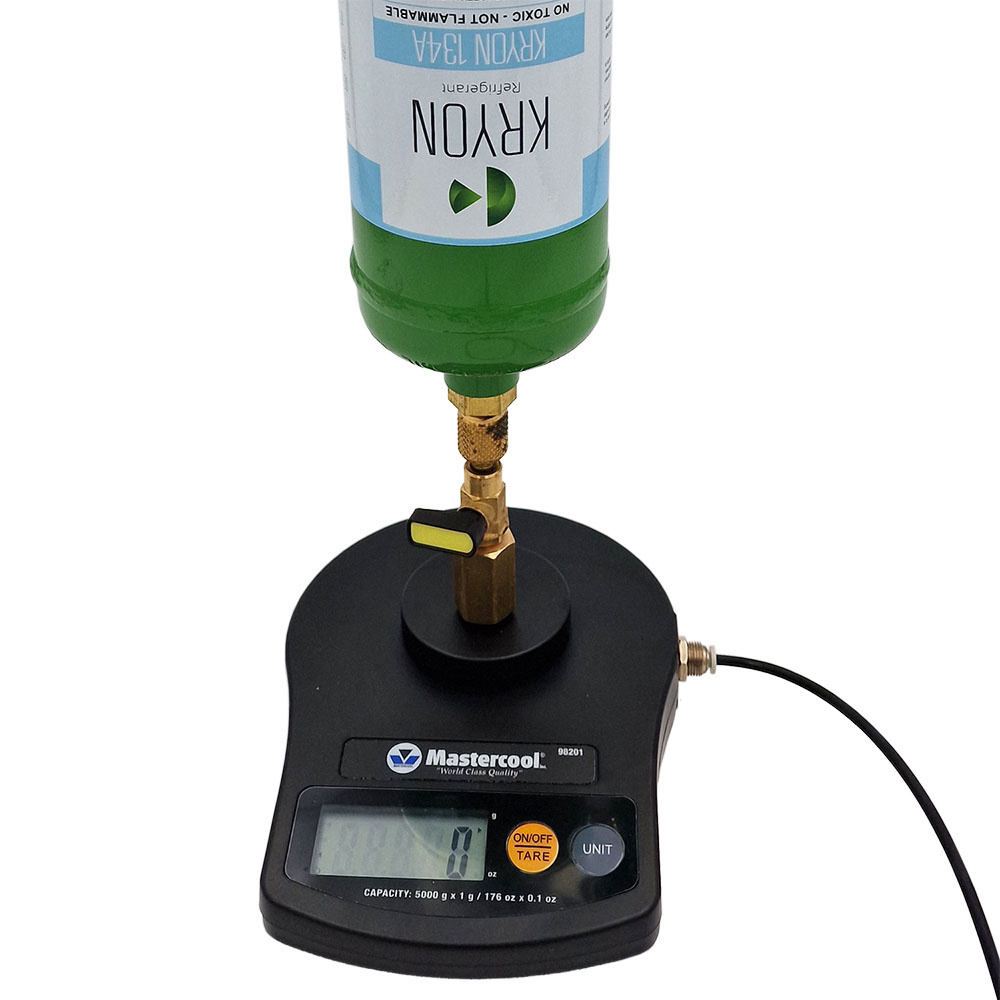

Mastercool’s high precision charging scale accurately measures small cans of refrigerant for charging systems that need a precise charge.
FEATURES:
- Hex cylinder adapter included for easy attachment of refrigerant cylinder to scale

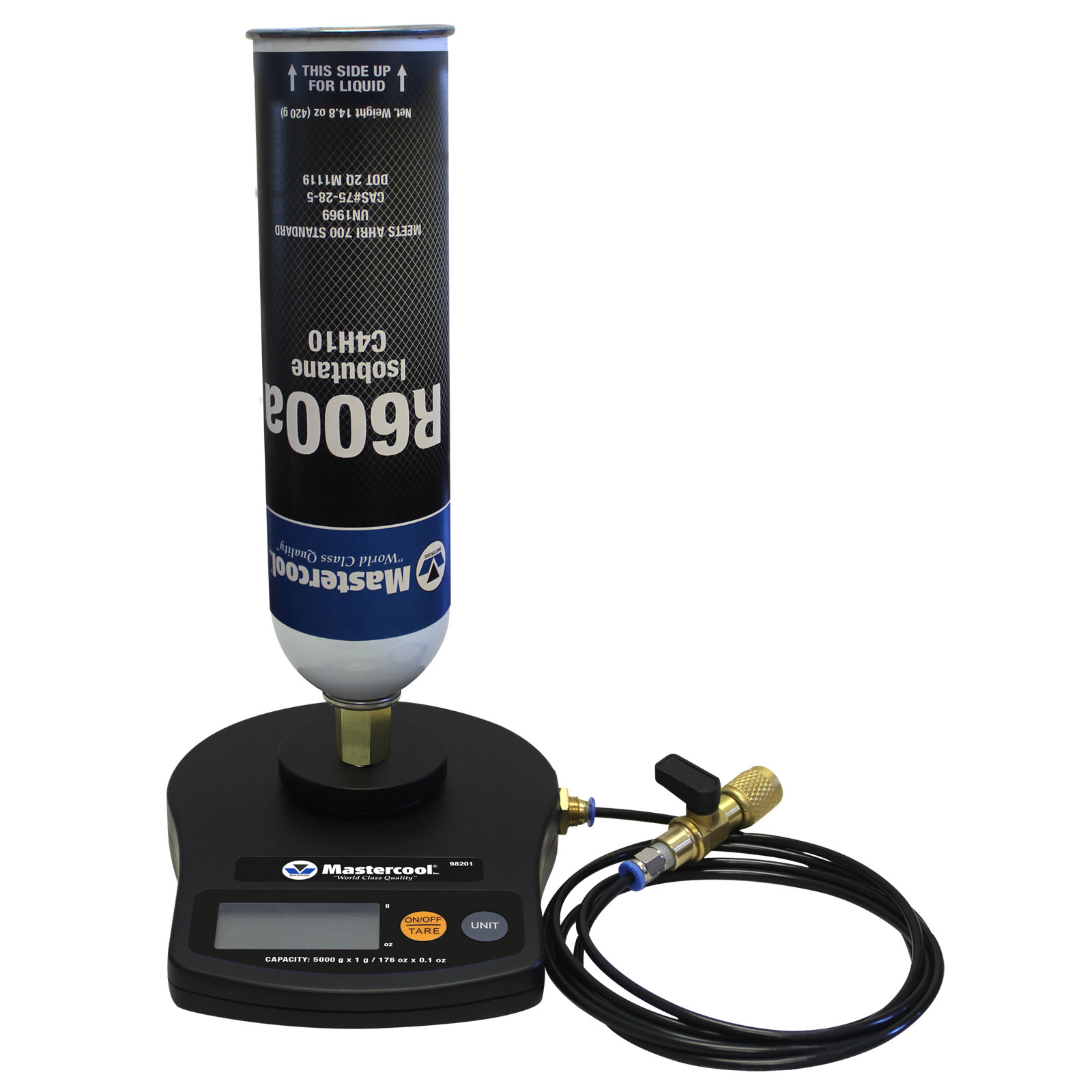

- Specially designed for R600a and R290

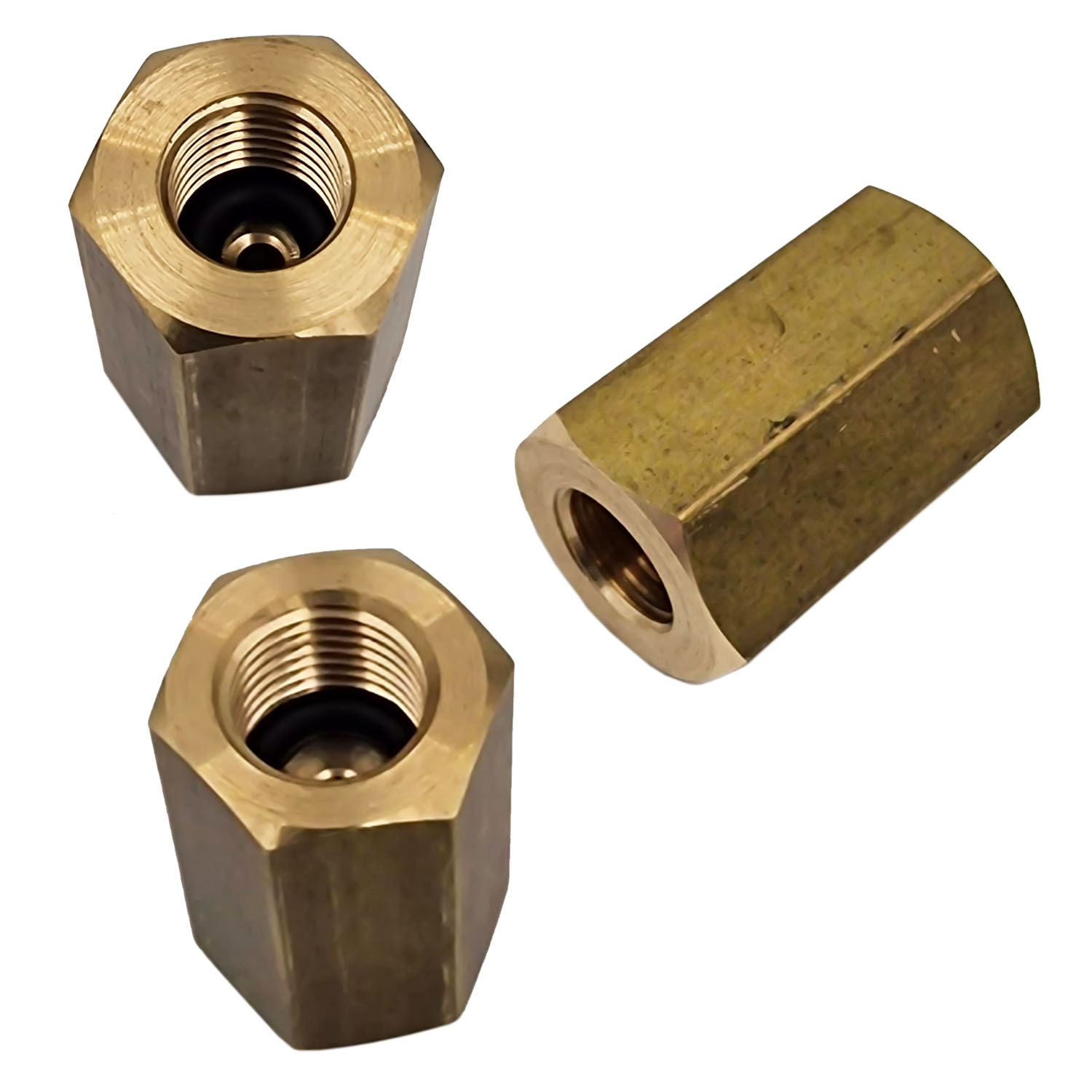

- Supplied with 3 adapters (outlet female 7/16 20-UNF for connection to 1-liter R600a-R290 cylinders, outlet female 1/4 SAE RH and outlet female 5/16 SAE RH for connection to 1-liter and 2,5-liter R134a, R410A, R407C, R32, R422D cylinders)
- Built in check valve will hold any remaining refrigerant within the 900 mm. nylon tube
- Slim design for easy storage
- Two button keypad for easy operation
- Unit change (grams & ounces)
- One touch tare weighing function
- Auto zero
- Auto off automatically turns off its power if the scale is not used within 3 hours
SPECIFICATIONS:
- Capacity: 5000 grams
- Sensitivity: 1 gram
- Charging Capability: up to 1 gram accuracy
- Dimensions: (140 (w) x 185 (l) x 40 (h) mm)
- Power Source: 3 x AAA 1.5v battery
- Fitting: 1/4” SAE M flare fitting with check valve
