Fieldpiece USA - SM482V—Wireless 4-Port SMAN® Refrigerant Manifold and Micron Gauge (JobLink® wireless system), high and low pressure gauge calibration report included in price.

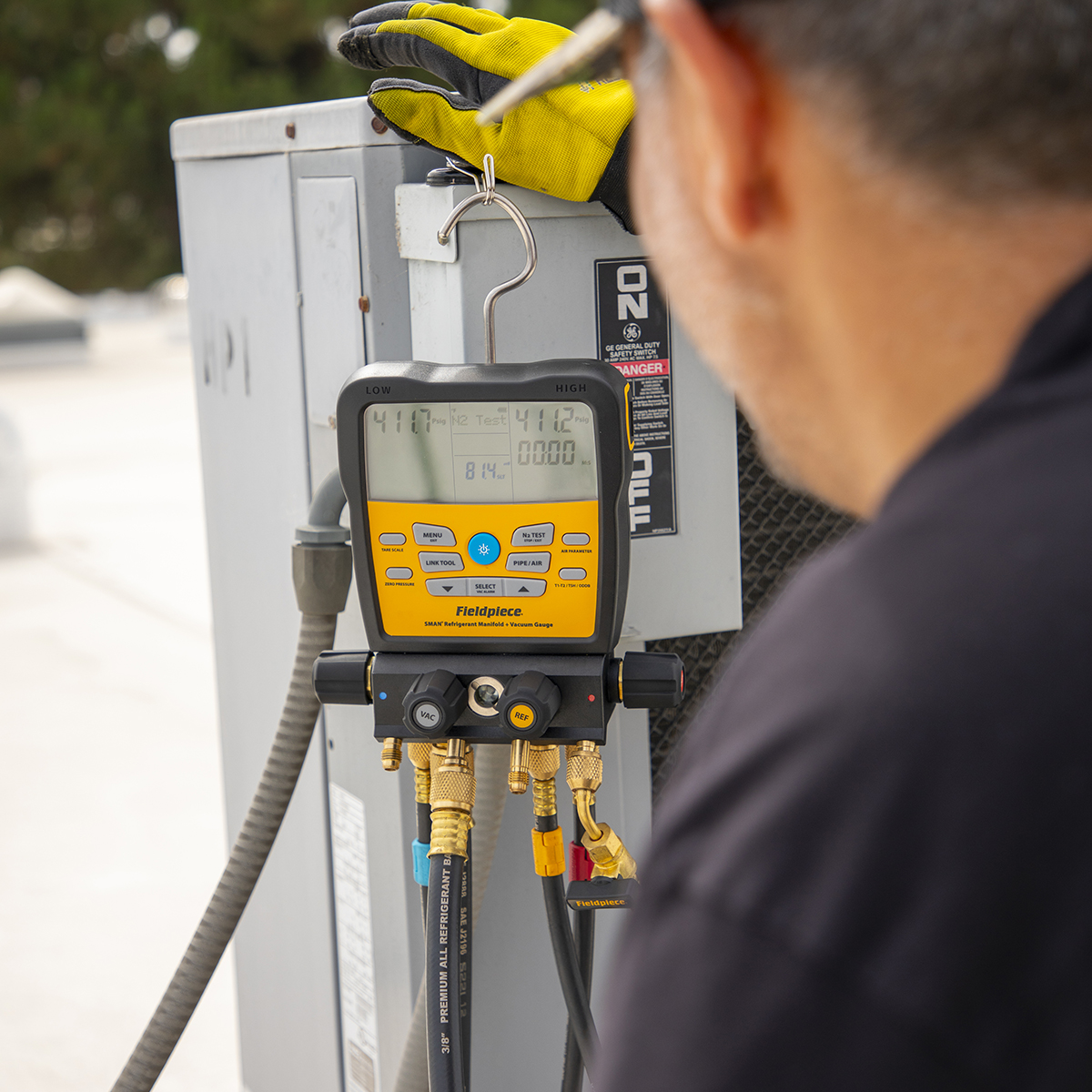

Taking the pulse of an HVACR system requires experience, precision and reliability – everything you can count on with the SMAN Refrigerant Manifolds. SMAN measures, calculates and helps you diagnose with ease. View live pressure, temperature and vacuum readings on the large, 5-inch screen and connect your Job Link® wireless tools for a full system view on the display.
SM482V INT digital manifold can work with complex HVACR systems and integrate with the Job Link® tools, ensuring you have all the information you need in the palm of your hand.
- Support A1, A2L and A3 refrigerants;
- Integrate with Job Link® tools;
- Temperature compensated system tightness test;
- Weather resistant IP55 heavy duty design.
Four reasons why you need the SM482VINT
- Integrate with Job Link® tools: The wireless SM482VINT is the heart of every job as the Digital Manifold. All the Job Link® tools can be connected to the SM482VINT and with a 300m wireless range, you can find real-time, accurate measurements of all the Job Link® tools right on your Digital Manifold. Plus, you now have the option to connect a third JL3RH Psychrometer directly to the manifold. The on-board data logging feature streamlines your job and makes sure you can provide the customers with all the answers they need.
- Support A1, A2L and A3 refrigerants: The SM482VINT has been designed to work with low GWP refrigerants and blends to comply with F-gas regulations. This high-tech Digital Manifold does not only help you do your work easier, faster, and better, but it also supports the environment.
- Reliable, accurate, and personalized: Thanks to the temperature compensated system tightness test function, you never have to worry about inaccurate measurements when pressure testing a system. On top of that, the built in vacuum gauge provides you with all the vacuum related information you need to know. Plus, the SM482VINT is perfect for every technician with the language support of 12 total languages!

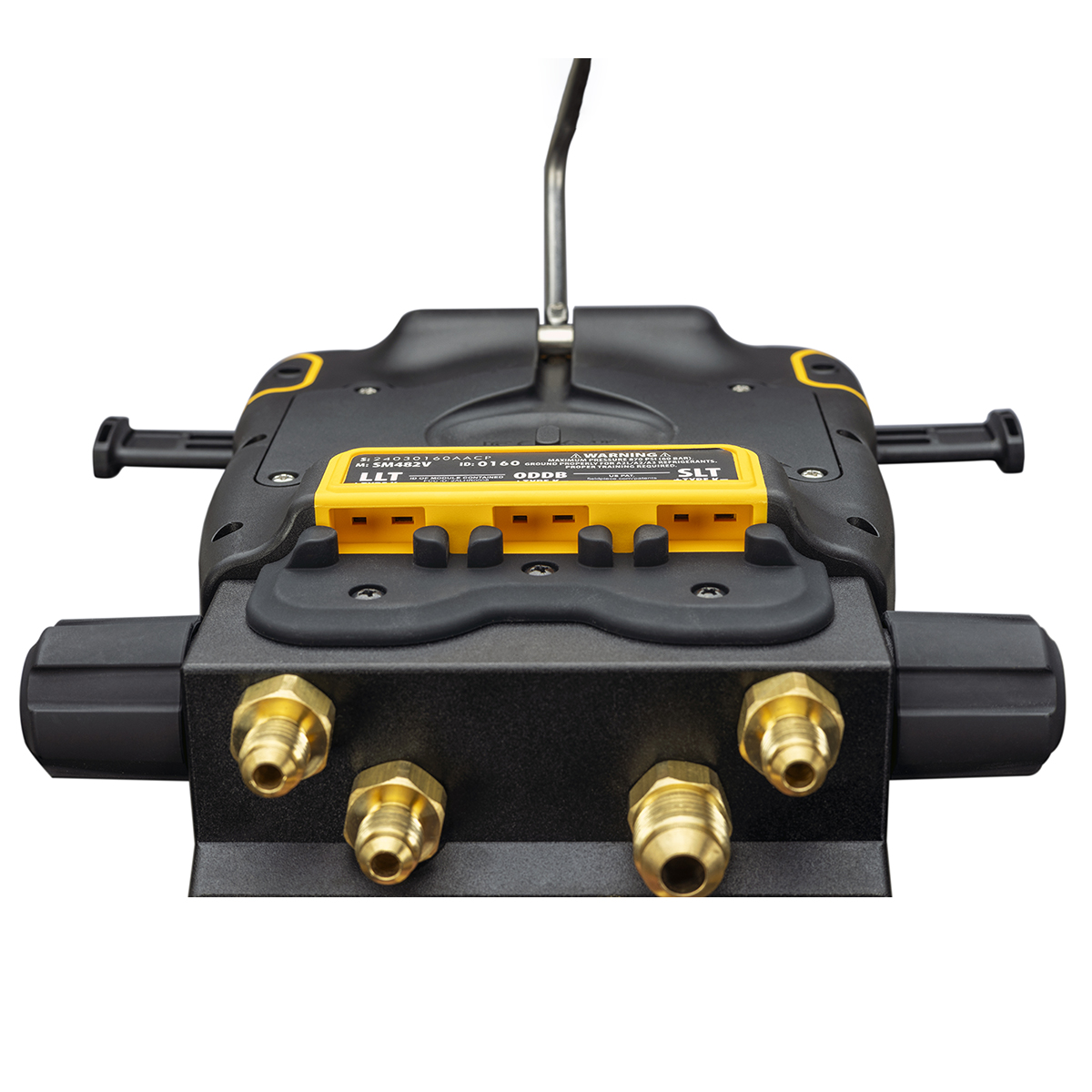

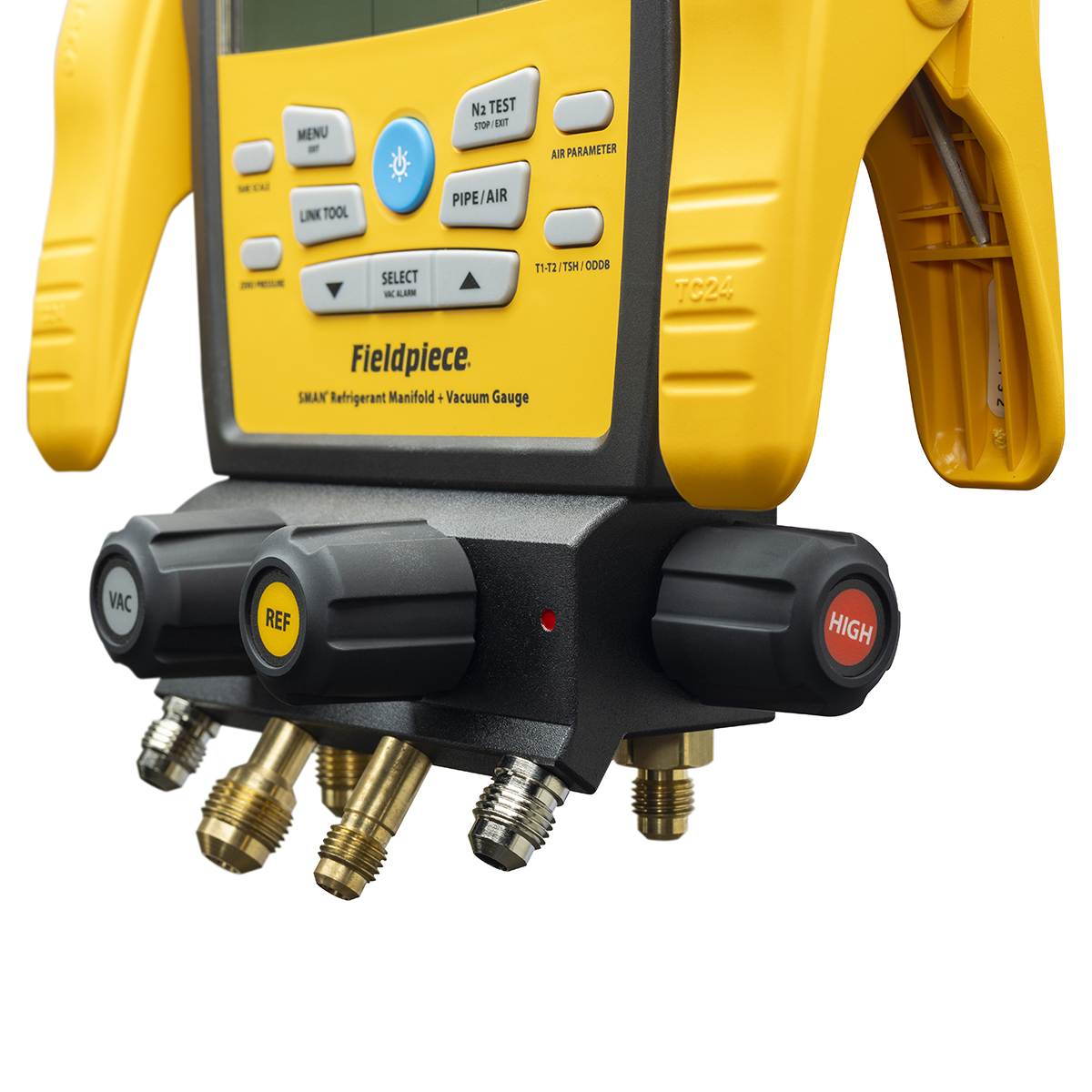

- Heavy duty design: Robust and reliable. The improved manifold block with separated holders and ports for more durability, reinforced hook, an updated IP55 water resistance rating, and impact resistant light up screen ensure the SMAN® is able to withstand any conditions so you can keep doing your job easier, faster, and better.
Specifications Product
- Display: LCD (12.7 cm diagonal)
- Backlight: Blue (adjustable duration)
- Low Battery Indication: is displayed when the battery voltage drops below the operating level.
- Over Range Display: OL for pressure, - - - - for temperature
- Auto Power Off: 30 minutes of inactivity (adjustable)
- Maximum Manifold Pressure: 5998 kPa (870 Psig)
- Battery Type: 6 x AA alkaline
- Battery Life: 405 hours typical
- (without vacuum, backlight, and wireless)
- Radio Frequency: 2.4 GHz
- Wireless Range: 300 meters line of sight.
- Distance decreases through obstructions.
- Data Port: USB-C (for extracting data logs or updating firmware)
- Operating Environment: -10°C to 50°C at <75% RH
- Storage Environment: -20°C to 60°C at <80% RH (with battery removed)
- Temperature Coefficient: 0.1 x (specified accuracy) per °C (-10°C to 18°C, 28°C to 50°C)
- Weight: 1.8 kg
- Water Resistant: Tested to IP55
Included in package
- SMAN® Refrigerant Manifold (4 Port)
- (1) ANC82 Padded, Easy-Open Case
- (2) TC24 Type K Pipe Clamp Thermocouples
- (1) ATA1 Type K Bead Thermocouple w/Clip
- (2) 5/16” Spare Hose Holder Fittings
- (6) AA Alkaline Batteries
Refrigerants: New refrigerants are continually being added so be sure to check the latest firmware.
R11, R12, R13, R22, R23, R32, R113, R114, R115, R116, R123, R124, R125, R134A, R236FA, R245FA, R290, R401A, R401B, R402A, R402B, R403B, R404A, R406A, R407A, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R414A, R414B, R416A, R417A, R417C, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R427A, R428A, R434A, R438A, R448A, R449A, R450A, R452A, R452B, R453A, R454B, R458A, R500, R501, R502, R503, R507A, R508B, R513A, R600, R600A, R601, R601A, R744*, R1233ZD, R1234YF, R1234ZE
*Maximum pressure: 870 Psig (6000 kPa)
