Complete kit for Leak Detection R&A/C systems, composed by pressure reducer, nitrogen/hydrogen blend and electronic leak detector (calibration certificate included)

Complete kit for Leak Detection R&A/C systems, composed by pressure reducer, nitrogen/hydrogen blend and electronic leak detector

Also suitable for connection to industrial N₂ and N₂/H₂ cylinders with valve outlet 21,7 x 1/14" RH

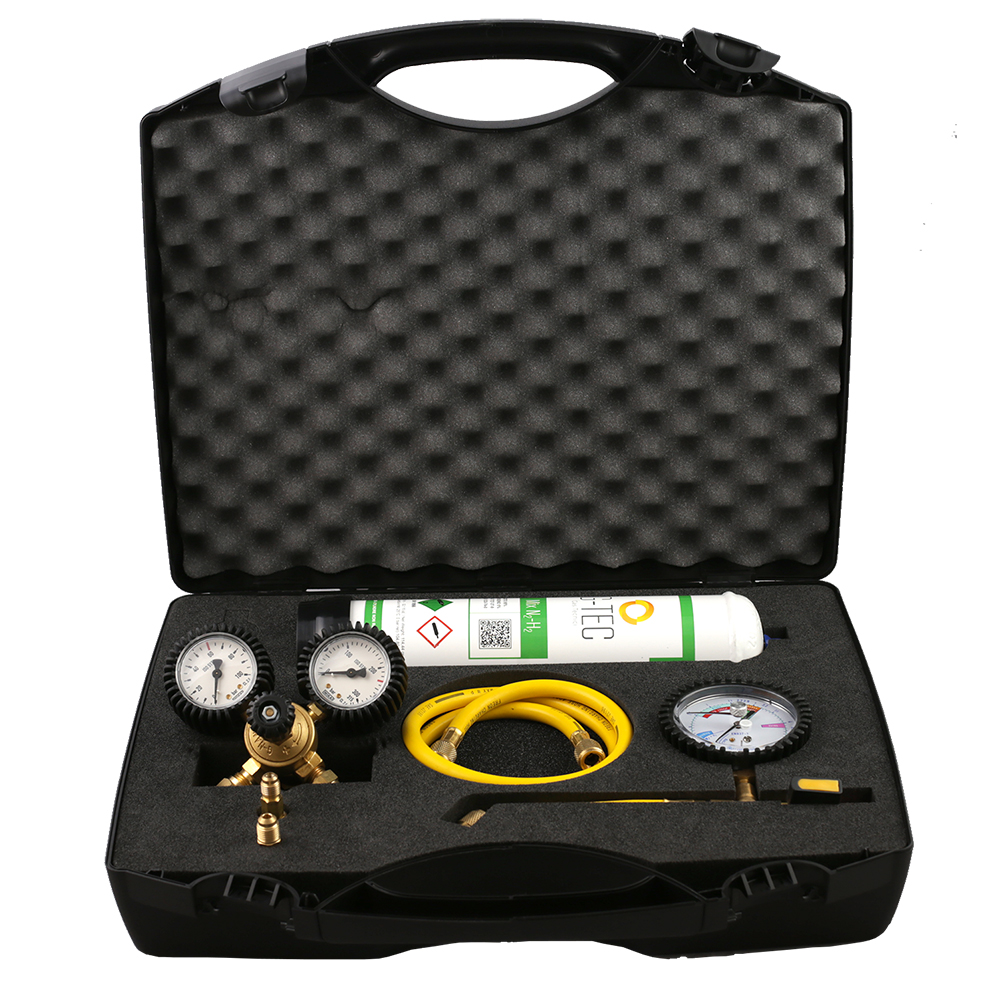

• K-Leak Tester, an essential equipment that allows the pressurization of refrigeration and air conditioning systems; it works by simulating theoperating pressure reached by RAC systems, while working at the standard conditions. Using this equipment, the technician will be able to pressurize the system at the right pressure value, for a given refrigerant; the right operating pressure of each refrigerant is shown by the pressure gauge dial (each refrigerant is identified by different colours). Once the operating pressure is reached, the technician will be able to detect leakages in the systems (eg. caused by faulty components, badly executed flaring, defective welded joints) which will cause loss of pressure, detected by the pressure gauge included in the kit.
  • Composed by:
    • Plastic case
    • Flexible tube with ball valve and pressure gauge (with colour coded sections)
    • Flexible tube 1 mt. (yellow) – 4000 psi
    • Adapter ¼” SAE female – 5/16” SAE male
    • Adapter ¼” SAE male – 5/16” female
    • Nitrogen pressure regulator (outlet pressure max 50 bar)
    • Nitrogen cylinder G-TEC N2/H2 5% – capacity 0,95 lts. – gas contents 105 Nlt./114 gr.
    • Plastic base for cylinder capacity 0,95 lts.
    • Instructions

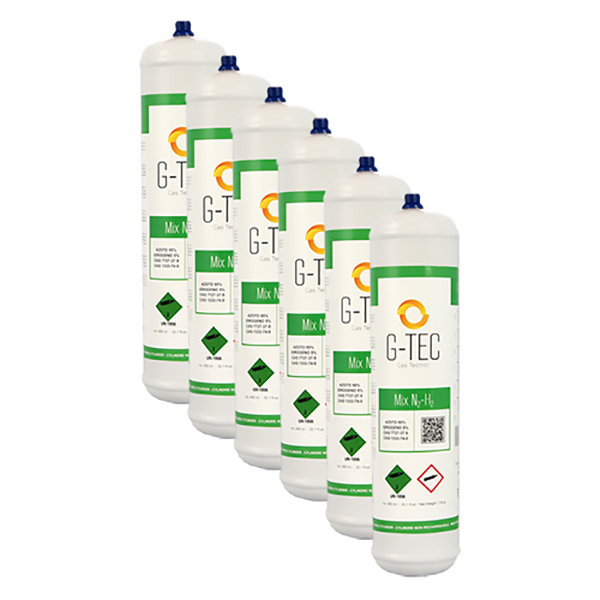

• 6 spare nitrogen/hydrogen cylinders, capacity 0,95 liters - gas contents 105 Nlts. - 114 grams

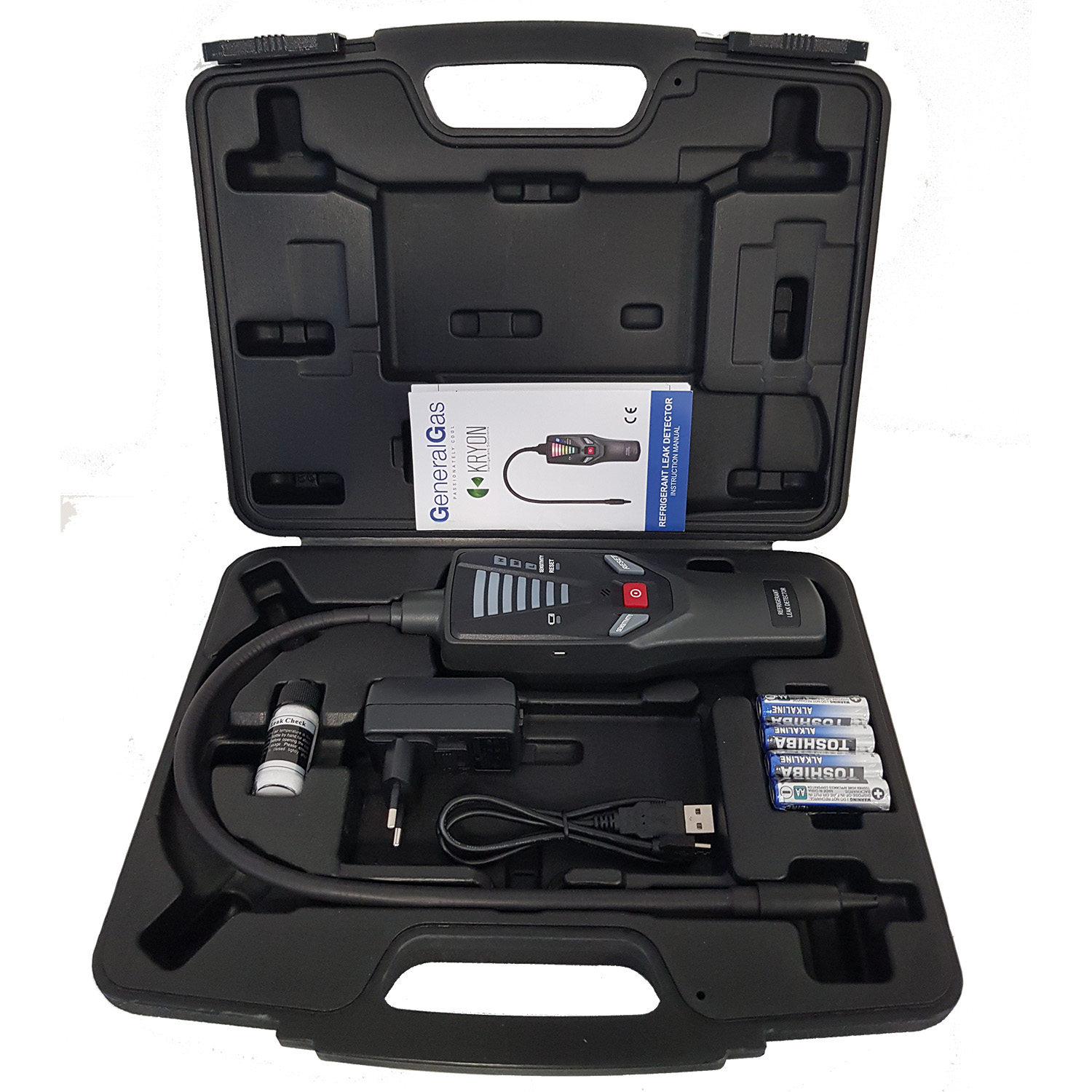

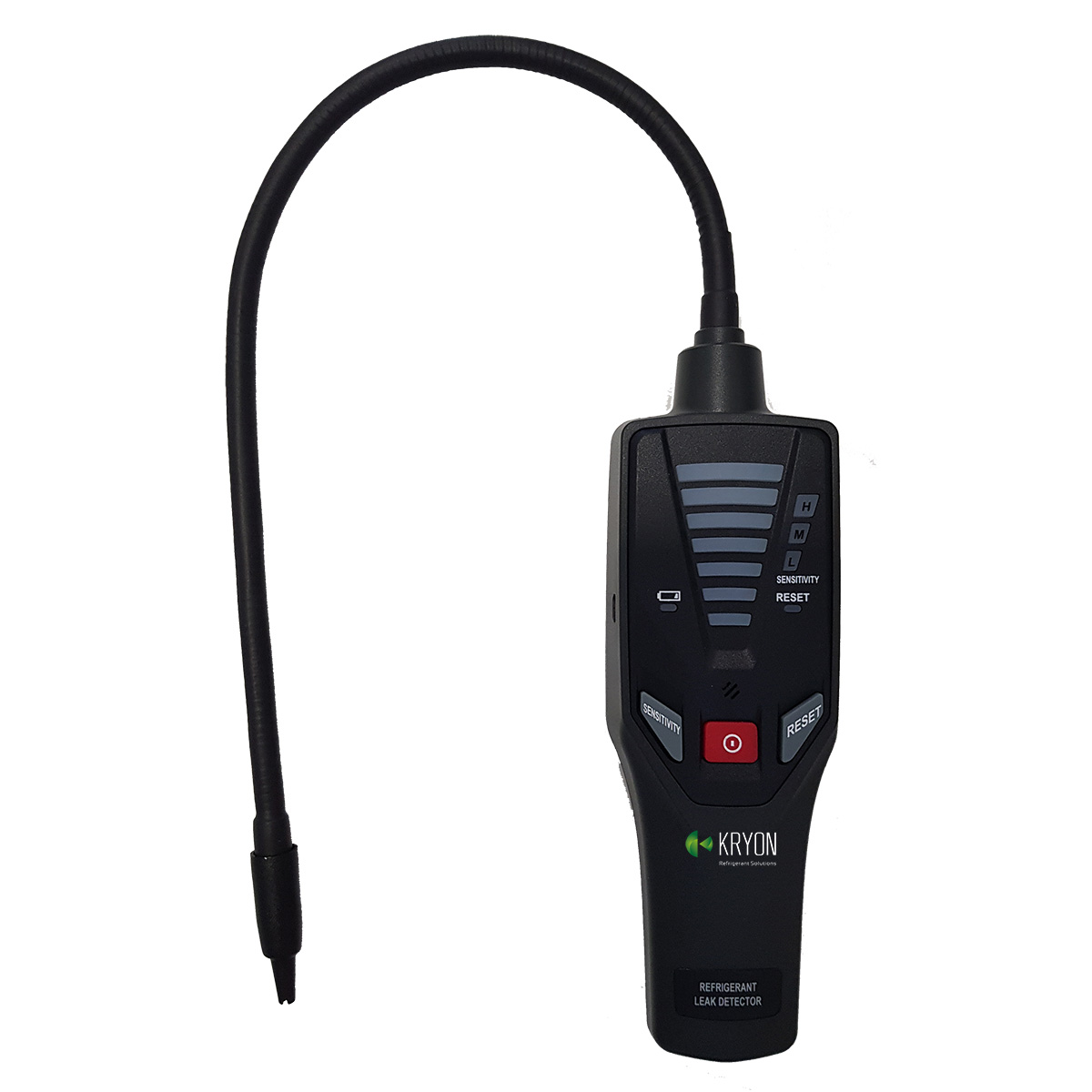

• Electronic leak detector, specifically designed to detect the gas mixture of Hydrogen H2 (5%) / Nitrogen N2 (95%) and all Refrigerant Gases R134a - R410a - R407c - R1234yf - R32 R404 - R502 - R600 - R290. The leak detector is equipped with a heating sensor and a microprocessor which guarantees a very precise and accurate signal. Thanks to the presence of an intensity regulator and 7 LED indicators, having a coloured visual scale function, the device guarantees the detection of the leakages less than 5ppm (2g/year)

  • Technical features:
    • Semiconductor heated sensor
    • 40 cm stainless flexible probe
    • Operating temperatures from 0 to 40 °C
    • 3 sensitivity levels
    • Leak detection indicator with 7 LED tricoloured visual scale
    • Detectable refrigerant gases: R134a-R1234yf-R410a-R404a-R407c-R32-R502- R600-R290
    • Meets SAE J1627 CE regulations
    • Power source: 2 x C alkaline batteries
    • Battery charger 3.3 V/0.5 A
    • Plastic Case for storage and transportWeight: 418 g (battery included).

IMPORTANT: the instrument is supplied already provided with a calibration certificate, issued by an accredited laboratory.

The instrument, before being marketed, has already been calibrated at our care and expense at an accredited laboratory.

In the package you will find a form to fill in, entering the data of the tool you purchased (including invoice number and date of purchase), and send to the e-mail address certificati-taratura@generalgas.it

As soon as we receive the completed form we will send you, free of charge, the calibration certificate made out to your company and bearing the model and serial number of the instrument (certificate valid for the purposes of F-Gas certification).
