R417A Freon™ (Isceon) MO 59 - KryoBox T-PED refillable cylinder 13,6 Lt - 13 Kg / 42 bar


R417A Freon™ (Isceon) MO59 in Bombola Kryobox 13,6 Lt - 13 Kg / 42 bar  - Foto 1
R417A Freon™ (Isceon) MO59 in Bombola Kryobox 13,6 Lt - 13 Kg / 42 bar  - Foto 2
R417A Freon™ (Isceon) MO59 in Bombola Kryobox 13,6 Lt - 13 Kg / 42 bar  - Foto 3
R417A Freon™ (Isceon) MO59 in Bombola Kryobox 13,6 Lt - 13 Kg / 42 bar  - Foto 4
Order the product online
Price
€ 927,30 / Piece(s)
VAT excluded

RFQ for large quantities
(minimum 10 pcs)
Need to buy large quantities? Contact us for a customized proposal.

    2347 IPCC
Following new
Fgas Reg. (EU) 2024/573

Temperature Range

Share:

The ideal retrofit refrigerant

R-417A, also known under the brand name Freon™ (Isceon) MO 59, is an easy-to-use and non-ozone depleting HFC-based retrofit refrigerant.
R-417A was develop in order to replace R 22 in fixed direct expansion air conditioning systems and in medium temperature commercial refrigerator systems.

Applications

R-417A is used in home and commercial air conditioning systems.
R-417A is also used in commercial refrigeration (medium temperature), including restoration plants, supermarket refrigerated display cases, food processing and preservation systems.

Performance

  • R-417A is a non-ozone depleting refrigerant that allows the use of already existing plants.
  • It is possible to fill the system up during operation, without removing the whole refrigerant charge.
  • Discharge pressure and temperature are lower compared to R-22, with the extension of the life of compressor.
  • Easy, simple and economic retrofit.

Recommended Lubricants

R-417A is compatible with traditional and new lubricants, including mineral oil, alkylbenzene or polyester oil. Most of the time, changing the lubricant during the conversion is not necessary.

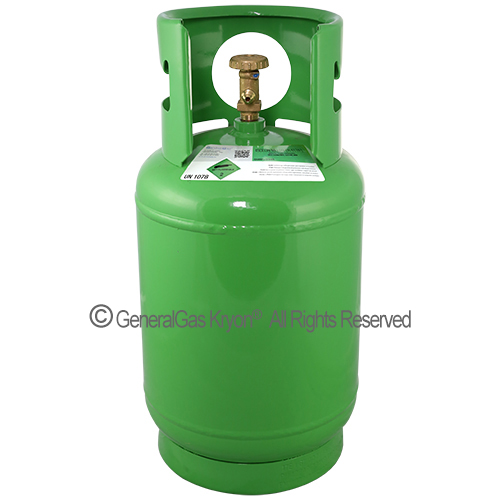

KryoBox® Cylinders

KryoBox® cylinders are helpful every time a limited quantity of refrigerant charge is needed.

These cylinders are light and easy to handle compared to the traditional ones, therefore their transportation is much easier. KryoBox® cylinders are available in two formats, 6,4 liters and 13,6 liters; they are manufactured in full compliance with T-PED (Transportable Pressure Equipment Directive) and are packed in high-strength cardboard boxes in order to make their transport and storage on the shelf much easier.

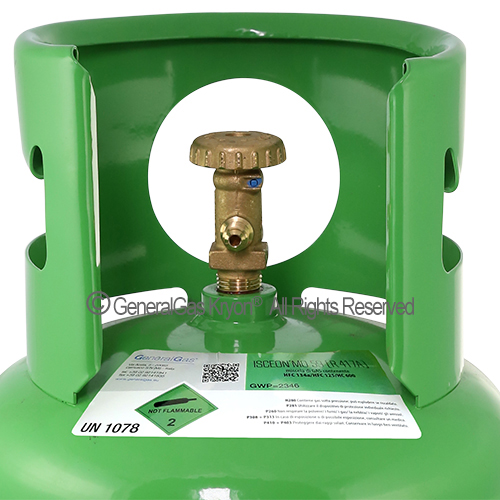

KryoBox® cylinders R134a (AUTO) are provided with a special quick coupling automatic valve that prevents leaks that usually occur with plug valves; standard valve 1/4” with handwheel and safety device is also available for all refrigeration and residential air conditioning applications. In addition, KryoBox® R410A cylinders are supplied with an adapter with outlet 5/16" SAE.

We have always been sensitive to environmental issues; with the “F-Gas-Friend”, General Gas has implemented the F-Gas Directive by buying back the refillable KryoBox® Cylinders, cylinders, so that they are not wasted in the environment and can be regenerated and filled again.

Performance

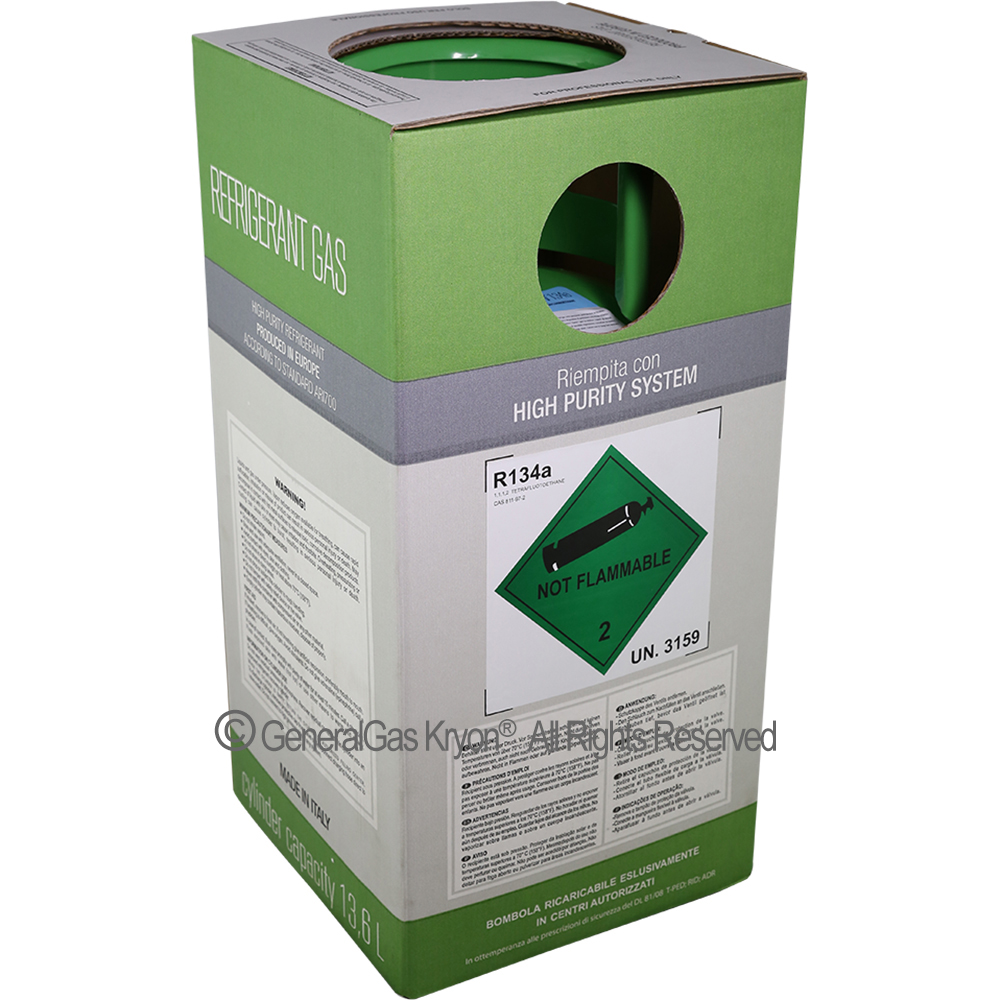

KryoBox® cylinders are light but they are also sturdy thanks to the protection of high-strength cardboard. Cardboard boxes are provided with a special aperture that allows you to connect the charging hose to the outlet valve, without having to remove the cylinder from its cardboard box.

Even in upside down position, it is possible to mount the hose in such a way that it is easy to open the valve while taking the liquid gas phase.

KryoBox® cylinders are refillable; they can be regenerated and filled again. In that case a yellow label (F-Gas Friend) will be stuck on the cylinder.

GeneralGas KryoBox cylinders are manufactured in compliance with the European T-PED regulation and are refillable an infinite number of times.

The displayed price includes a value of 30,00 euro, corresponding to the security deposit of the empty container; this security deposit constitutes a binding modality for the return of the container for refilling purposes, as provided for by Article 11 paragraph 4 of the new Reg. (EU) Fgas 2024/573.

GeneralGas also provides an effective refill service for the empty container and subsequent return to the customer (HandyGas service), carried out at the GeneralGas plant in Cernusco sul Naviglio (MI).

Thanks to our exclusive HandyGas Refill and Redelivery service, if you return the empty KryoBox container you will be entitled to receive a new KryoBox cylinder for the price of the refill only (you will therefore only pay the value of the refrigerant gas).

Note: the cost of shipping the empty container from the customer's warehouse to the GeneralGas plant in Cernusco sul Naviglio is borne by the customer.
