R449A Opteon® XP 40 in KryoBox cylinder 12,5 Lt - 10 Kg / 48 bar - T-PED (handwheel valve 1/4)


R449A Opteon® XP 40 (HFO-HFC) in Bombola Kryobox 12,5 Lt - 10 Kg / 48 bar (valvola a volantino 1/4 SAE) - Foto 1
R449A Opteon® XP 40 (HFO-HFC) in Bombola Kryobox 12,5 Lt - 10 Kg / 48 bar (valvola a volantino 1/4 SAE) - Foto 2
R449A Opteon® XP 40 (HFO-HFC) in Bombola Kryobox 12,5 Lt - 10 Kg / 48 bar (valvola a volantino 1/4 SAE) - Foto 3
R449A Opteon® XP 40 (HFO-HFC) in Bombola Kryobox 12,5 Lt - 10 Kg / 48 bar (valvola a volantino 1/4 SAE) - Foto 4
Order the product online
Price
€ 606,12 / Package(s)
VAT excluded

RFQ for large quantities
(minimum 10 pcs)
Need to buy large quantities? Contact us for a customized proposal.

    1396 IPCC
Following new
Fgas Reg. (EU) 2024/573

Temperature Range

image image
Share:

R449A Opteon® XP 40 in KryoBox cylinder 12,5 Lt - 10 Kg / 48 bar - T-PED (handwheel valve 1/4" SAE)

Opteon® XP40 (R449A): the Low GWP replacement of R-404A / R-507 in commercial & industrial refrigeration

Opteon® XP40 is a non-ozone depleting, low Global Warming Potential (GWP) hydro-fluoro-olefin (HFO) based refrigerant, with a GWP value particularly low (reduction >65% compared to R-404A) and optimal balance of properties, to replace R-404A/R-507 in positive displacement, direct expansion low - and medium - temperature commercial and industrial applications.
Opteon® XP40 enables improved energy efficiency at medium and low temperatures.
Opteon® XP40 is suitable for new installations, and enables a quick, simple and economical retrofit of existing systems operating with R-404A and R-507.
Opteon® XP40 is safe, non-flammable extensively field tested and supported by major equipment and component manufacturers.
Opteon® XP40 is miscible with POE lubricants.

Applications:
Opteon® XP40 is suitable for low- and medium-temperature commercial and industrial DX refrigeration; centralized rack systems, distributed systems, walk-in coolers/freezers, preparation rooms, cold stores (e.g. condensing units), plugin cabinets, chilled vertical cabinets.
Opteon® XP40 is suitable for new equipment as well as for quick and easy retrofit of existing systems operating with R-404A/R-507.

Performance:
  • Opteon® XP40 enables improved performances and energy efficiency vs. R-404A and R-507
  • Opteon® XP40 is non ozone depleting and has a remarkable low GWP (Global Warming Potential) compared to “old” R-404A and R-507 (>65% reduction)
  • No equipment/lubricant/seal changes required (superheat adjustment may be required)
  • Opteon® XP40 is safe and nonflammable (Classe ASHRAE - A1)

Recommended Lubricants:
Opteon® XP40 is miscible with POE lubricants.

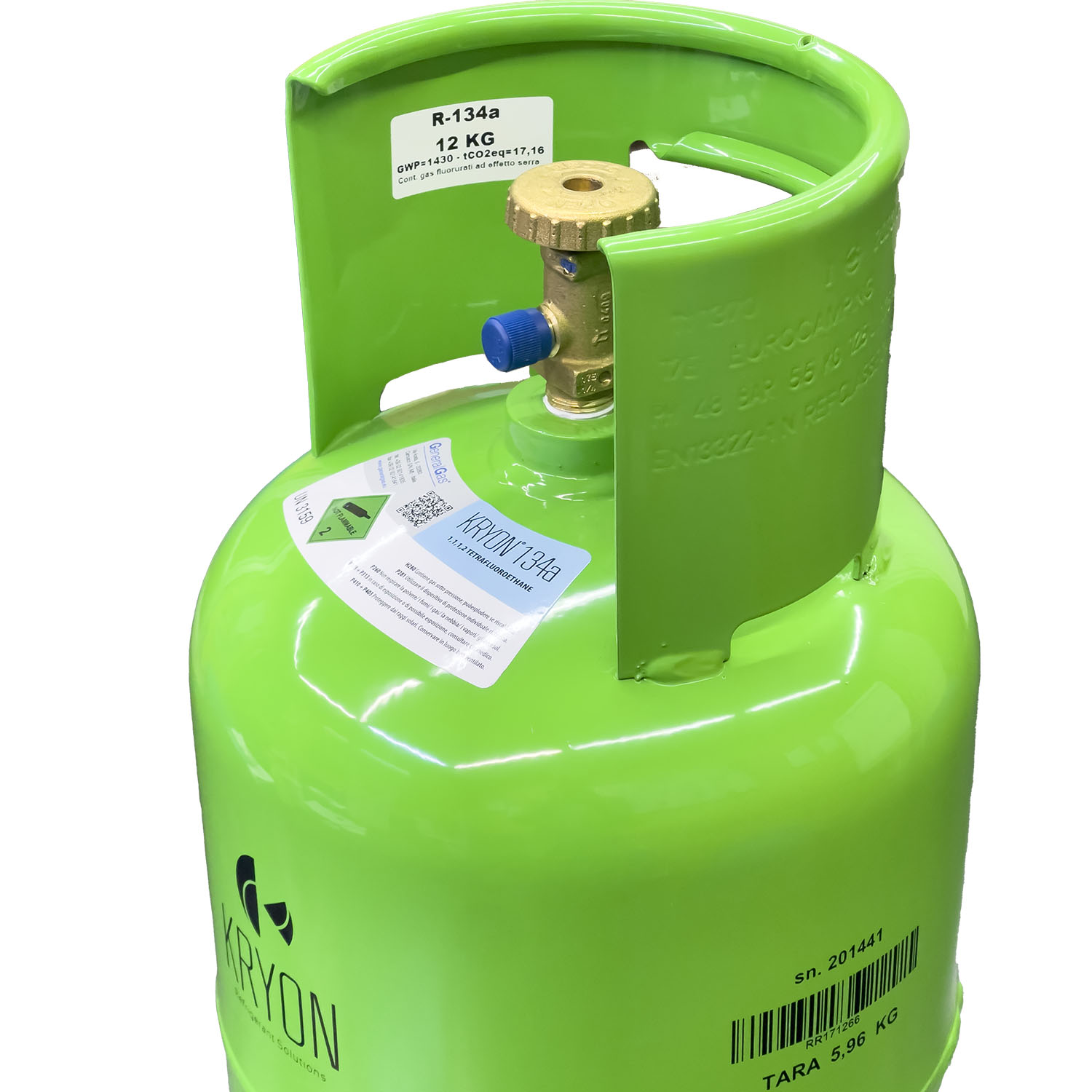

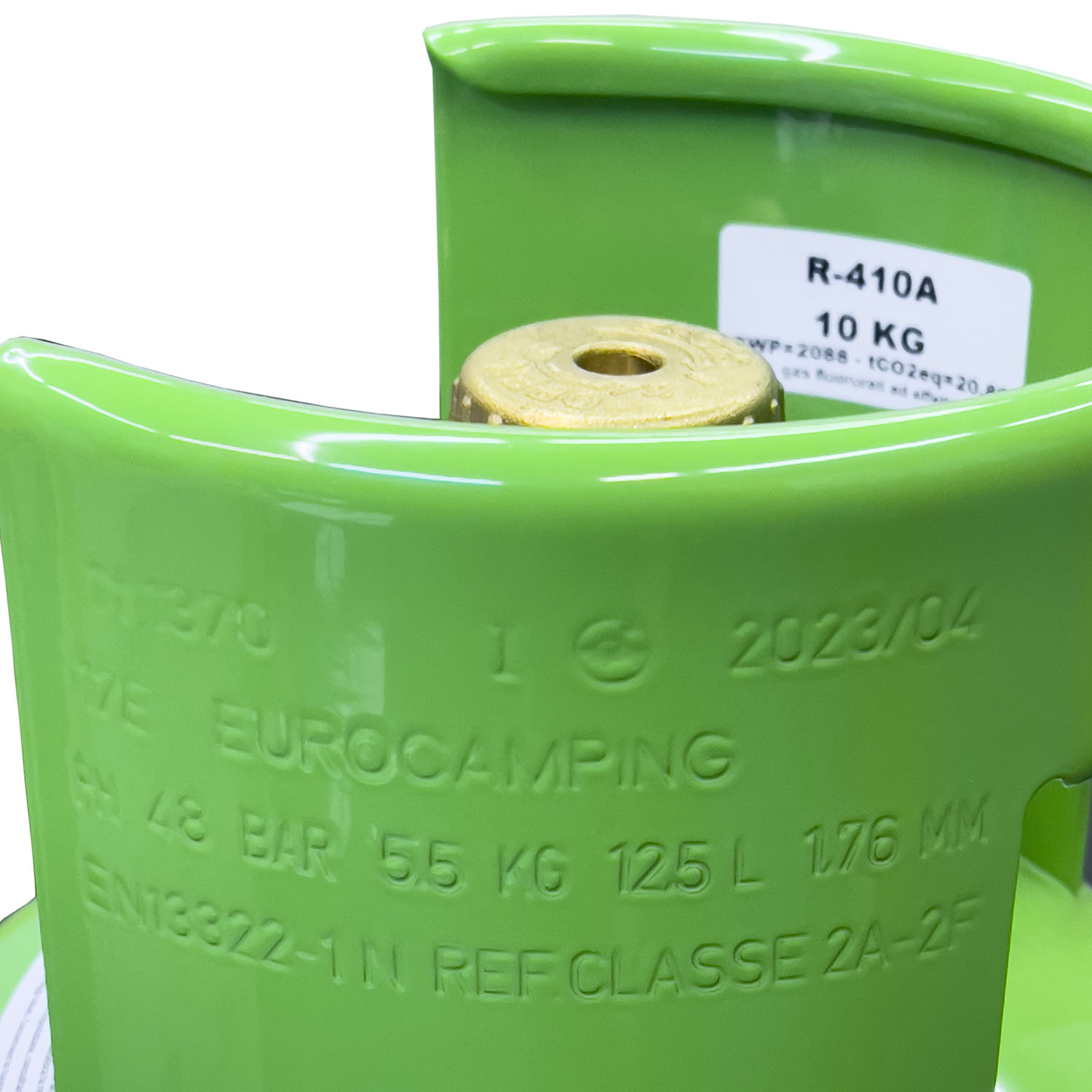

KryoBox® Cylinders

KryoBox® cylinders are helpful every time a limited quantity of refrigerant charge is needed.

These cylinders are light and easy to handle compared to the traditional ones, therefore their transportation is much easier. KryoBox® cylinders are available in two formats, 6 liters and 12,5 liters; they are manufactured in full compliance with T-PED (Transportable Pressure Equipment Directive) and are packed in high-strength cardboard boxes in order to make their transport and storage on the shelf much easier.

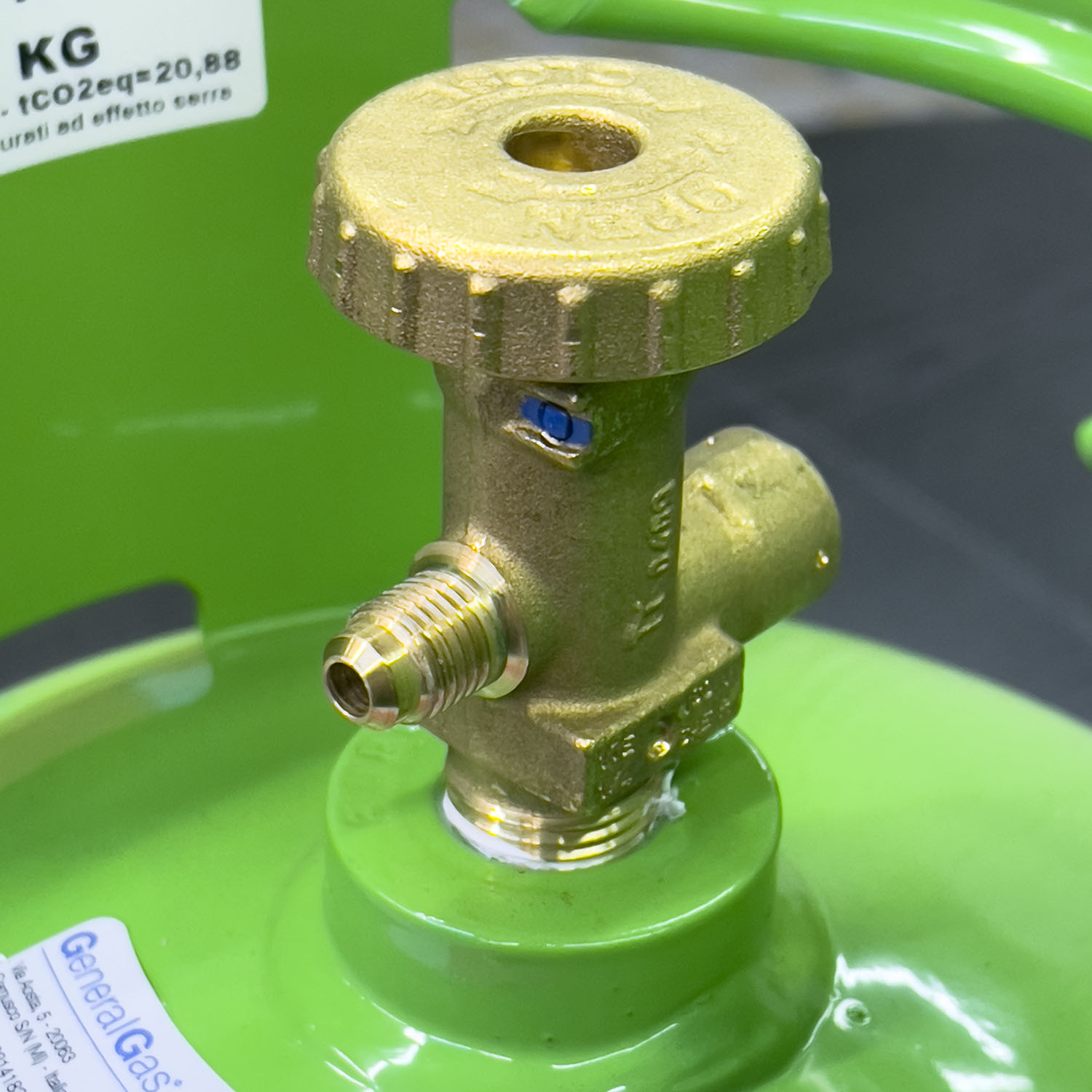

KryoBox® cylinders R134a (AUTO) are provided with a special quick coupling automatic valve that prevents leaks that usually occur with plug valves; standard valve 1/4” with handwheel and safety device is also available for all refrigeration and residential air conditioning applications. In addition, KryoBox® R410A cylinders are supplied with an adapter with outlet 5/16" SAE.

We have always been sensitive to environmental issues; with the “F-Gas-Friend”, General Gas has implemented the F-Gas Directive by buying back the refillable KryoBox® Cylinders, cylinders, so that they are not wasted in the environment and can be regenerated and filled again.

Performance

KryoBox® cylinders are light but they are also sturdy thanks to the protection of high-strength cardboard. Cardboard boxes are provided with a special aperture that allows you to connect the charging hose to the outlet valve, without having to remove the cylinder from its cardboard box.

Even in upside down position, it is possible to mount the hose in such a way that it is easy to open the valve while taking the liquid gas phase.

KryoBox® cylinders are refillable; they can be regenerated and filled again. In that case a yellow label (F-Gas Friend) will be stuck on the cylinder.

GeneralGas KryoBox cylinders are manufactured in compliance with the European T-PED regulation and are refillable an infinite number of times.

The displayed price includes a value of 30,00 euro, corresponding to the security deposit of the empty container; this security deposit constitutes a binding modality for the return of the container for refilling purposes, as provided for by Article 11 paragraph 4 of the new Reg. (EU) Fgas 2024/573.

GeneralGas also provides an effective refill service for the empty container and subsequent return to the customer (HandyGas service), carried out at the GeneralGas plant in Cernusco sul Naviglio (MI).

Thanks to our exclusive HandyGas Refill and Redelivery service, if you return the empty KryoBox container you will be entitled to receive a new KryoBox cylinder for the price of the refill only (you will therefore only pay the value of the refrigerant gas).

Note: the cost of shipping the empty container from the customer's warehouse to the GeneralGas plant in Cernusco sul Naviglio is borne by the customer.
