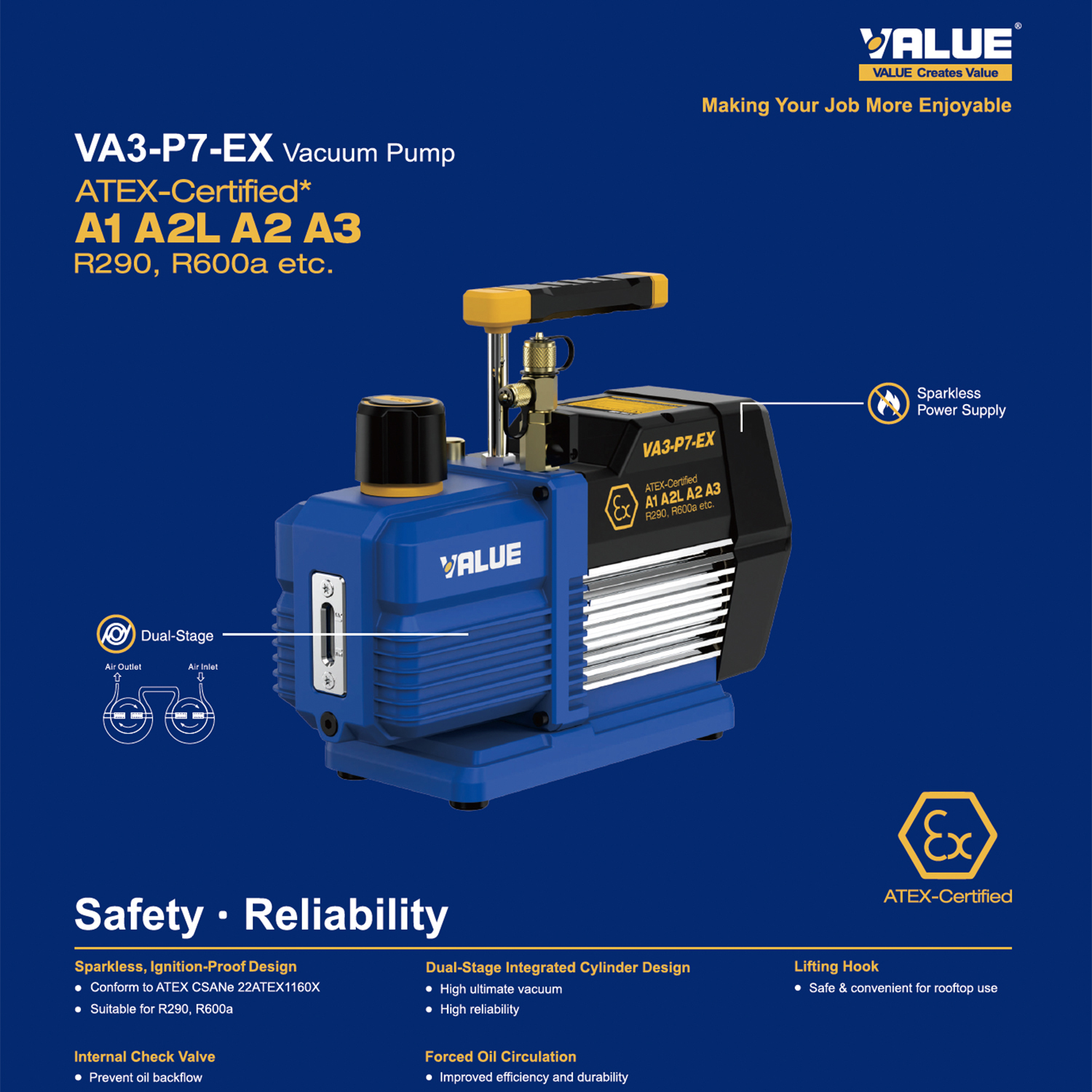

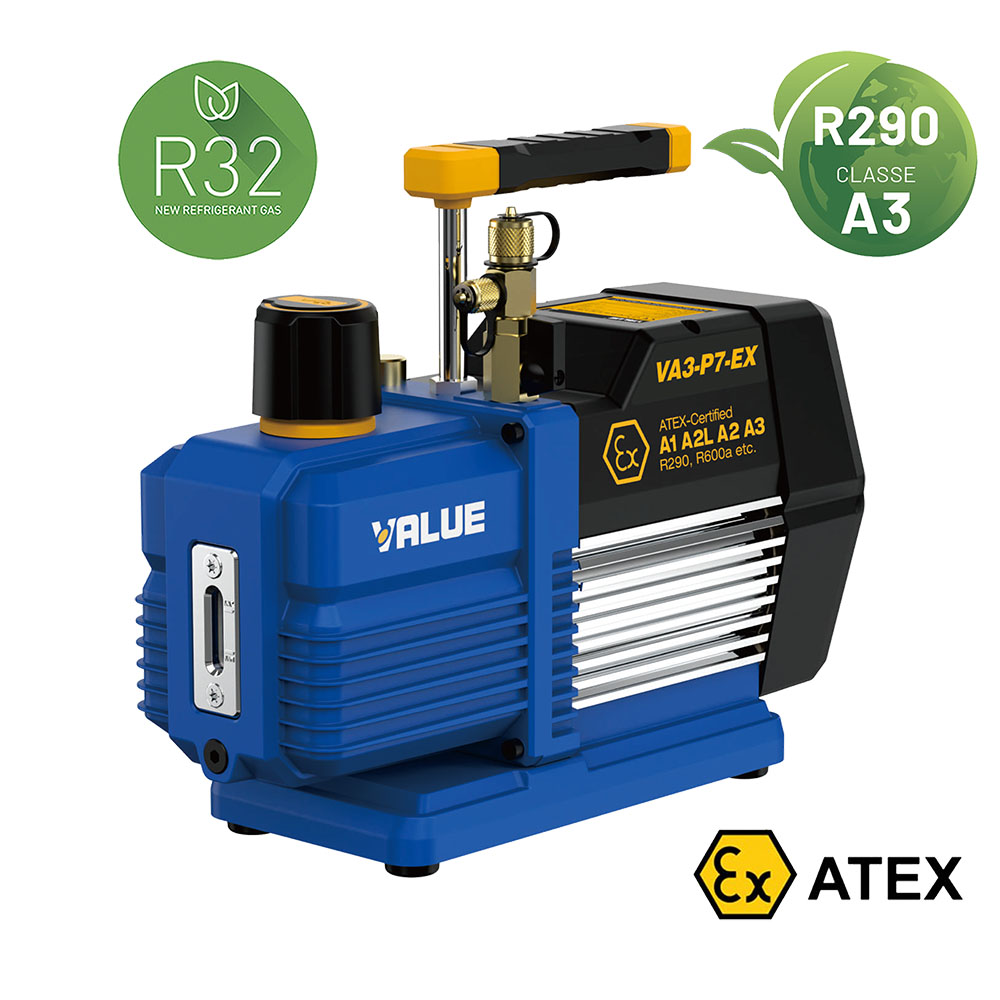

VALUE VA3-P7-EX ATEX vacuum pump capacity 198 litres/minute, vacuum 15 microns, suitable for A3 (R290 and R600a), A2, A2L and A1 refrigerants - two-stage, 3/4 HP motor - vacuum degree 2 x10(-2) mbar - 0.02 mbar/2 Pa/15 microns - with non-return valve
ATEX No.: CSANe 22ATEX1160X
ATEX (ATmosphère EXplosive) certified vacuum pump: This standard ensures the safety of refrigeration and air conditioning specialists using flammable fluids (type A2L, A2 and A3).
The TF-VAP7-EX 2-stage vacuum pump is precise and efficient. It is lighter, smaller, top of the range and weighs less than 12 kg.
It is equipped with a variable speed drive and a manual isolation valve to isolate the refrigerant circuit for leak tests or in the event of a power failure.
Automatic lubrication ensures fin sealing, cooling and reliability.
The design of the large, easy-to-check oil level indicator and its large, ergonomic cap help prevent oil shortage.
DC inverter technology makes it lighter and more efficient.
The TF-VAP7-EX vacuum pump is not suitable for ammonia (NH3) as it is classified B2L.
Thanks to its industrial (OEM) design and technology, the VA3-P7-EX pump definitively solves the problem of long vacuum set-up times in large systems, while offering a high vacuum level (15 microns).
Its inverter-driven motor and two-stage rotary pump enable best-in-class vacuum setting.
The combination of advanced technology and aesthetic design make the VA3-P7-EX vacuum pump a best-in-class product while maintaining an exceptional price/performance ratio.
Features:
Compatible refrigerants: A3 (propane R290, isobutane R600a), A2, A2L, A1
Industrial design with very high reliability, high vacuum level
Double stage
Electronic starter
Safety thermostat integrated in the motor
Oil backflow prevention system; no system contamination in the event of power failure
Large oil sight glass for easy control
Manufactured in accordance with ISO 9001 - CE standard - Directive 2002/95/EC (RoHS)
Ergonomic handle
Technical specifications:
Flow rate at 50 Hz: 198 litres/minute
Vacuum grade: 2 x10(-2) mbar - 0,02 mbar/2 Pa/15 micron
Electric motor: 3/4 HP
Inlet connection: ¼" SAE, ⅜" SAE
Oil tank capacity: 426 ml
Dimensions: 346×130×287 mm.
Weight: 11.8 kg
