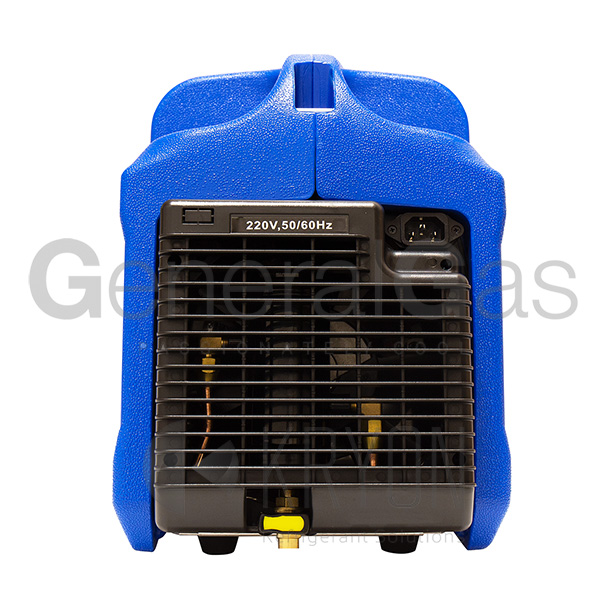

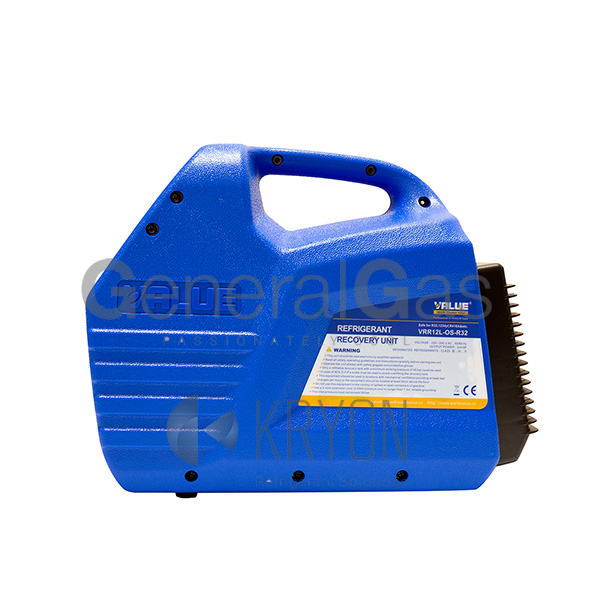

VALUE VRR12LOS-R32 - Recovery unit 3/4 HP with oil separator, 378 kg/hour push/pull mode, suitable for A2L refrigerants


VALUE VRR12LOS-R32 - Recuperatore 3/4 HP con separatore olio, 378 kg/ora in push/pull, adatto anche per refrigeranti A2L - Foto 1
VALUE VRR12LOS-R32 - Recuperatore 3/4 HP con separatore olio, 378 kg/ora in push/pull, adatto anche per refrigeranti A2L - Foto 2
VALUE VRR12LOS-R32 - Recuperatore 3/4 HP con separatore olio, 378 kg/ora in push/pull, adatto anche per refrigeranti A2L - Foto 3
VALUE VRR12LOS-R32 - Recuperatore 3/4 HP con separatore olio, 378 kg/ora in push/pull, adatto anche per refrigeranti A2L - Foto 4
VALUE VRR12LOS-R32 - Recuperatore 3/4 HP con separatore olio, 378 kg/ora in push/pull, adatto anche per refrigeranti A2L - Foto 5
Order the product online
Price
€ 657,39 / Piece(s)
VAT excluded
Product shipped within 48 hours

RFQ for large quantities
(minimum 10 pcs)
Need to buy large quantities? Contact us for a customized proposal.

Share:

VRR12LOS-R32 - Recovery unit 3/4 HP with oil separator, 378 kg/hour push/pull mode, suitable for A2L refrigerants

Compatible refrigerants:

  • HFOs included all A2L LOw GWP refrigerants (R32, R1234yf, R455A, R454C, R448A, R449A, R452A etc.)
  • Commonly used HFCs, HCFCs including R134a and blends such as R410A, R404A, R407C, R507 and other Class III, IV and V refrigerants
  • Not recommended for use with highly flammable A3 refrigerants (R290, R600a).

Features:

  • High recovery speed with oil-free compressor /4 HP
  • Built-in oil separator
  • Filter/dryer inlcuded
  • Self-purge without the need to change hoses
  • Oversize fan for increased cooling
  • Full size protected gauges for both suction and tank pressur
  • Robust structure suitable to withstand heavty service

Specifications:

  • Power source 220 V single phase 50 Hz
  • Motore ¾ HP
  • Motor speed 1.450 rpm
  • Max current draw 4 A
  • Oil-less compressor, air cooled
  • High-pressure shut-off valve @ 38,5 bar
  • Recovery capacity (category V - R410A, R404A, R32, R507): 6,3 kg/minute in push/pull, 2,2 kg/minute liquid, 0,25 kg/minute vapour
  • Dimensions: 450 x 250 x 355 mm.
  • Weight 14,2 kg



Signup or Signin for Download

CE certifications Signup or Signin for Download
Instruction manual Signup or Signin for Download
